Nguồn gốc:
Trung Quốc
Hàng hiệu:
Customization
Chứng nhận:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Số mô hình:
Đầu nối bo mạch 44 chân 44 chân BM23PF 0,8mm

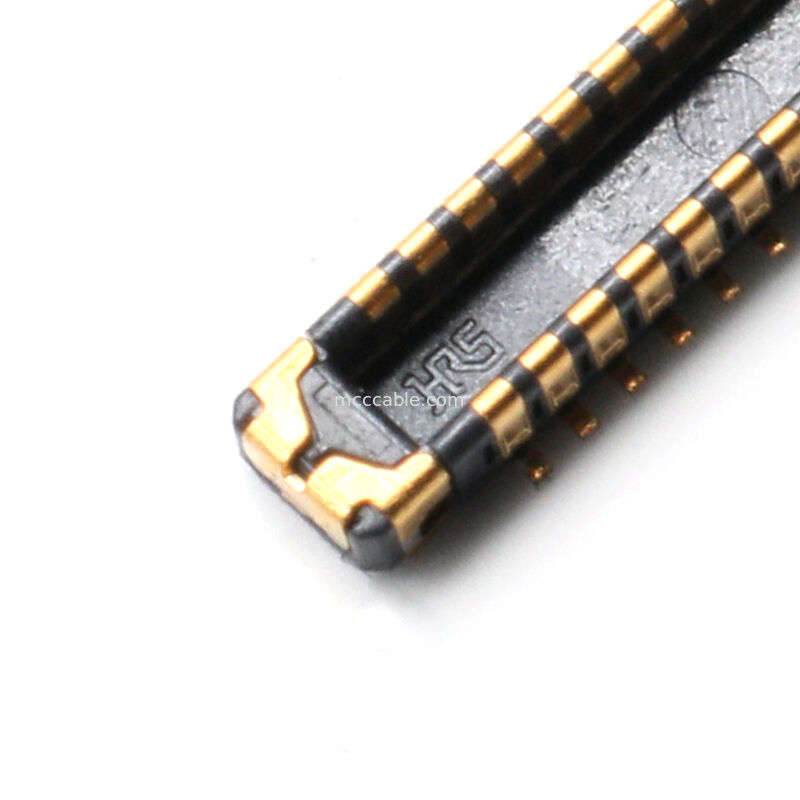

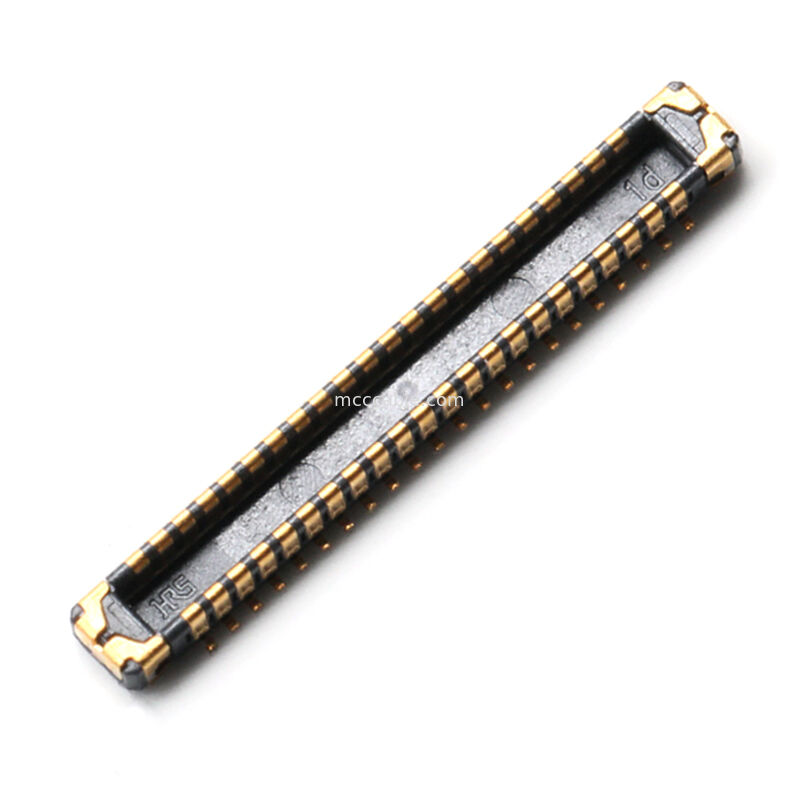

BM23PF 0.8mm Pitch 44-Pin Board-to-Board Connector
BM23PF0.8-44DP-0.35V Product Overview:
The BM23PF0.8-44DP-0.35V is a fine-pitch board-to-board connector designed for
high-density PCB interconnections.
With a 0.8 mm pitch and 44-pin configuration, it supports compact layouts requiring
reliable electrical performance and precise mating alignment.
BM23PF0.8-44DP-0.35V Key Features:
0.8 mm fine pitch, 44-pin configuration
Board-to-board vertical mating structure
Gold-plated contact interface
Low-profile, space-saving connector design
Suitable for high-density PCB layouts
BM23PF0.8-44DP-0.35V Typical Applications:
Display and embedded panel modules
Industrial control PCBs
Automotive electronic systems
Compact consumer electronics
High-density board interconnection designs
BM23PF0.8-44DP-0.35V Technical Specifications:
| Item | Specification |
|---|---|
| Connector Type | Board-to-Board |
| Pitch | 0.8 mm |
| Pin Count | 44 Pins |
| Mounting Type | SMT |
| Contact Plating | Gold |
| Compliance | RoHS |
BM23PF0.8-44DP-0.35V Customization Options:
Alternative pin counts within the same series
Different stacking height options
Contact plating thickness variations
Packaging options (tray / tape & reel)
Matching mating connector support
Q1. Is it a factory?
A: Yes, we are a factory with more than 16 years of design and manufacturing experience.
Q2. Is there any certification?
A: Yes, we have ISO9001, ISO14001, TS16949, ISO13485, and UL certifications.
Q3. What is your specialty?
A: We can design products according to the application requirements.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM and ODM orders. For OEM orders, the MOQ is 100 pcs. For ODM
orders, the MOQ is 1000 pcs. A mold fee will be charged depending on the design.
Q5. How long does it take to complete an order?
A:For small orders and products in stock, preparation and delivery take less than 3 days.
Shipping time depends on the chosen method—fastest 7 days, longest 1 month.For large
orders, material preparation takes 5–21 working days depending on quantity, testing 1–3
working days, and packing 1 day. The fastest lead time is 7 days, and the longest is 25 days,
excluding shipping.
Q6. What additional services can long-term clients get?
A:New products will be offered together with orders, allowing you to test their market potential
and sell them in your district.Additional fee discounts and lower prices for smaller-quantity
purchases.Support with promotional images, including adding your logo.
Q7. How long is the warranty, and how do you protect customers in case of defects?
A: All cables come with a 12–36 month warranty. For large orders, we provide 0.3%–0.5%
extra backup units. For example, ordering 1000 pcs will include 1003 pcs.If you receive more
than 5 faulty pcs and the defect rate is below 0.1%, please contact our sales team with photos.
We will replace the goods in your next order or issue a refund.
Q8. Do you accept free sample orders?
A: Yes, sample orders are supported. Some samples can be provided free of charge (shipping
cost not included).
How to contact us?
Send your inquiry details below and click “Send” now!
Free samples and the best price are waiting for you.
If you cannot find a product on our website, feel free to contact us — even if we don’t produce it,
we can help you source the same item with good quality and price.
